WATER IONIZER
Most trusted water Ionizers for Indian Water with Quantum Hydrogen Technology
Number of Plates: 5P
Power:200W
Number of Plates: 7P
Power:200W
Number of Plates: 9P
Power:300W
WATER IONIZER
Number of Plates: 5P
Power: 200W
WATER IONIZER
Number of Plates: 7P
Power: 200W
WATER IONIZER
Number of Plates: 9P
Power: 300W
Elegant and Modern Design with Easy to use Features
Touch-Sensor
Easy to use
Voice activated
Easy to use
Children friendly
360o Rotation
Elegant Design
Special Chrome Plating
Safe for Water
5" Color LCD
Step by Step Color LCD
Microcontroller based design
Visual color indicators
Mounting
Wall Mounting
Table top
Elegant and compact design
Display Colors
Backlight of LCD display will match the pH level color according to water pH level being used.
PURE
ALKALINE 1
ALKALINE 2
ALKALINE 3
ALKALINE 4
ACID 4
ACID 3
ACID 2
ACID 1
Easy Functions, User Friendly
Automatic and/or manual cleaning mode
The interior of the Electrolysis Tank is automatically cleaned on a regular basis, ensuring stable electrolysis operating conditions.Also user may manually clean unit whenever desired.
Voice on/off and volume level control function
Voice announcement can be turned on or off according to user's choice. The user can adjust the desired volume level.
Sensing function of supplied raw water
The outflow of functional water stops automatically when raw water is not supplied, preventing the electrolytic cell and power supply unit from being damaged due to current overflow, water from being wasted and accidental water leaks.
Filter Usage Indication and Replacement Time Guide
Level of filter usage can be identified through the LCD Screen on a real time basis. The recommended replacement time is automatically displayed on the screen with a voice guide.

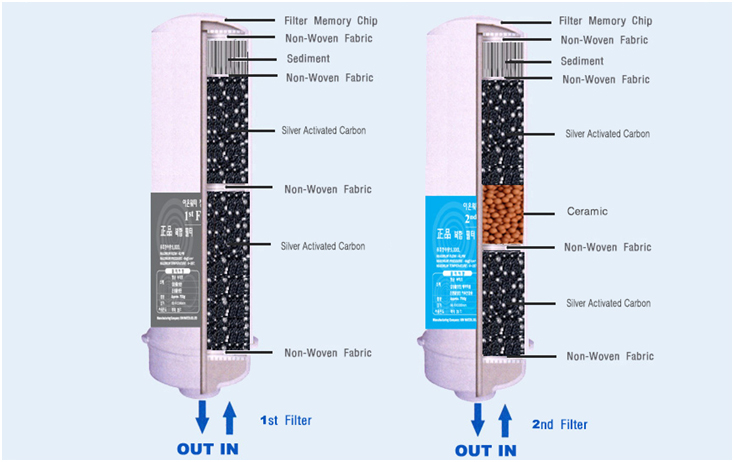

Dual Hybrid Filters for Quality Water
Specifications
Haptra Water Ionizers creates alkaline reduced water by first purifying the water with two special hybrid filters and then ionizing the water using platinized titanium plates
| Product | Alkaline water ionizer | ||
|---|---|---|---|
| Model | Haptra-5P | Haptra-7P | Haptra-9P |
| Color |  |
 |
 |
| No. of Electrode Plates | 5 Plates | 7 Plates | 9 Plates |
| Power Supply | 200W | 200W | 300W |
| LCD | 5" | ||
| The Object of Product | HaptraWater Ionizerscan produce acidic, alkaline water and purified water. Haptra Ionized water improves the symptoms of chronic stomach problems-chronic diarrhea, indigestion, intestinal dysbiosis and hyperacidity | ||
| Device Technology | World’s 1st Quantum Hydrogen Technology to suit needs of India Water | ||
| Filter Technology | Specifically Designed for India Water. Premium dual filtration system to provide great tasting water | ||
| Electrolysis Ability | 4 levels of alkaline water, 4 levels of acidic water, filtered only water | ||
| Electrolysis Cell | Platinized with platinum Titanium electrode plates and the diaphragm | ||
| Electrode Sheet Wash | Automatic cleaning on regular basis ensuring stable electrolysis operation condition | ||
| ORP Level | 240 Programmable PH and ORP Levels | ||
| Electrolysis Method | Continuous electrolysis (Built-in water flow sensor) Generative Capacity – 2.5L / min | ||
| Display | Display pH level and ORP level, 7 different colors of each level, water flow rate per minute, operation, filter usage(1st, and 2nd,), auto-diagnosis for error, water purification, and voice alert etc. | ||
| Output Capacity | 0.5-2.0 liters per minute(0.5L/min) |
|---|---|
| Available Temperature | 4ºC ~ 35 ºC |
| Available Water Pressure | 3.0kgf/cm2 |
| Controlling Method | Touch sensor |
| Filter Lifespan | 1st :6 months/6000ℓ, 2nd: 12 months/ 9000ℓ |
| Indicate Filter Change | ①After 6 months later from the last filter replacement date. You should replace the filter promptly, even though the filter life does not come to the end. ② When the available usage amount has been reached to 70ℓ ③ You should replace the filter promptly, If the water’s taste, smell, color etc. is not normal condition because of the decline in regional raw water quality or a period of water shortage, even though the filter life does not come to the end. |
| Filter kind | 1st filter :Hybrid filter, 2nd filter: Hybrid filter |
| Filter change instructions | Filter Change (see the user manual) |
| Power Source Protector | Fuse |
| Over-current Detector | Automatically stops the output of electrolytic cells |
| Over Temperature Protector | Temperature detector circuit installed inside SMPS power supply automatically stops the device |
| Composition / Water Supply Type | Stationary or wall-mounted / Direct connection to tap water |
| Made in | Korea |
| Standard Voltage and Frequency | 200-240V AC /50- 60Hz |
| Size / Weight | Size : 340(W)mm X 340(H)mm X 147(D)mm / Weight : 6.5kg |
